Understanding Tool Design in Metal Stamping & Its Impact on Quality Parts
Setting yourself apart in the metal stamping industry comes down to two particularly important components: consistency and high quality. Keeping up with those expectations means meeting tight production deadlines. However, this isn't always as simple as it sounds.
When it comes to precision metal stamping, few things are more important than tool and die design. Without quality components, the final stamped parts won't have the opportunity to shine.
Every project begins long before the material reaches the press. Ensuring high-quality, consistent, and precise metal stamping starts with the strength and accuracy of the tools and dies behind the process.
These components directly determine how accurately, consistently, and efficiently parts can be produced. For Globe Stamping, tool and die design is a top priority with no room for error, as every finished product must meet the highest standards.
In this blog, Globe Stamping will take you through the ins and outs of understanding tool and die design in custom metal stamping. Let’s get straight into it.
What are Tools and Dies? Why are They Important?
Both components are sturdy, custom-engineered parts that help make up a more complex custom metal stamping system. They serve as precision instruments that ensure the cut, quality, and repeatability of custom metal products. Without them, there is no guarantee that the final products will be up to standard or that materials won’t end up wasted. Wasted time and materials, and a lack of product reliability, can result in a loss of funds and reputation, making these parts essential to the industry.
But what are these precision components? What do they do? Why are they important? Let’s clarify in simple terms:
Die: A precision-made component used to cut, form, or shape metal into a specific design or profile. Dies are custom-engineered to ensure accuracy and consistency throughout production.

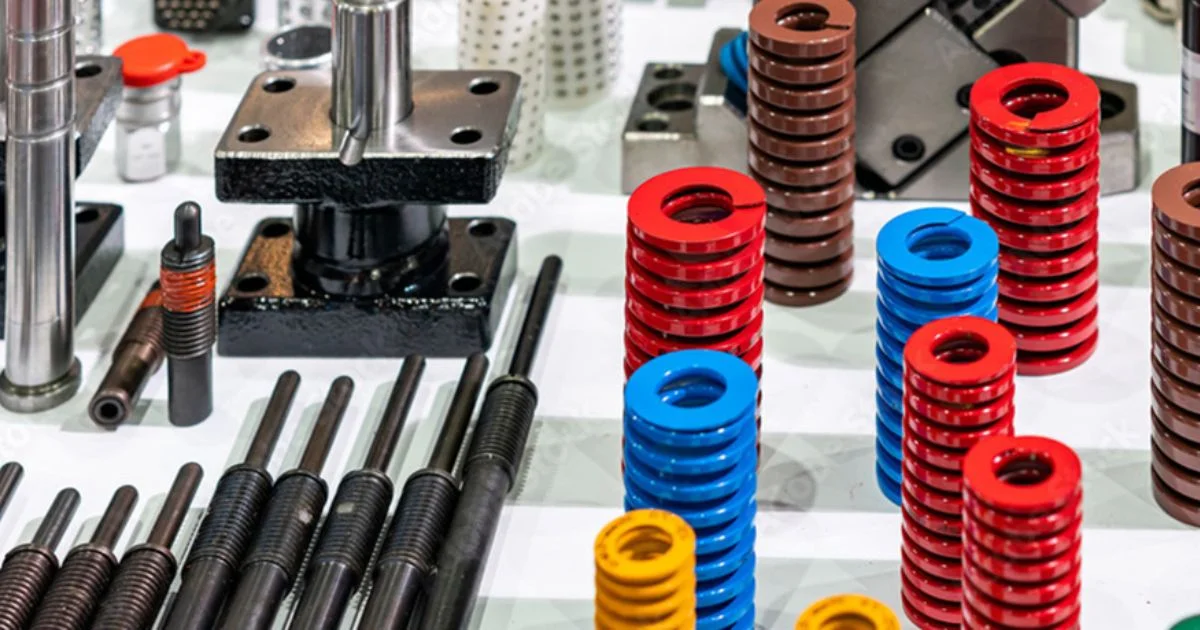

Tool: A broader term that refers to the complete stamping assembly, including dies, punches, guides, holders, spacers, and other components used to process and support the metal during manufacturing.
The quality and design of the tooling directly affect the precision, efficiency, durability, and overall cost of the finished stamped product. Without high-quality dies and tools, your production can suffer severely.
How are these Components Designed?
When choosing your tool and die components for custom metal stamping, you need to select parts designed to meet precise, specified expectations while also maintaining the efficiency needed to manufacture products at multiple scales.
These are some of the broader design considerations to keep in mind:
Part Review: Engineers assess the part design, material, and production needs to determine the best stamping approach.
Material Selection: The right materials are chosen for the tooling based on durability, production volume, and performance requirements.
Testing and Simulation: Digital simulations help identify potential issues and optimize tool performance before manufacturing.
Tool Production: Skilled toolmakers manufacture and assemble the tool and die components to exact specifications.
Fine-Tuning: The completed tool is tested and adjusted as needed to ensure consistent, high-quality results.
Every stamped component is going to have its own unique requirements, meaning that tool and die systems are also usually crafted to optimize accuracy, efficiency, tool life, and overall production performance.
The Importance of Tool and Die Efficiency
High-quality tools and dies significantly improve production efficiency; strong tooling reduces the potential for downtime, minimizes adjustments during production, and enables higher speeds without sacrificing overall quality. This means that even in circumstances where businesses require a large quantity of products, you can rest assured that your systems can consistently replicate the same item.
In contrast, companies that use lower-cost or poorly designed tooling can experience production halts, higher rates of product damage, and unpredictable output.
While it’s always tempting for any business, big, medium, or small, to find ways to save money that they can reinvest in their company, it’s more advantageous to put money towards high-quality dies and tools. Doing so helps you avoid common pitfalls such as machine failures, inconsistent quality, and scrapped materials.
To recap, the importance of efficiency for custom metal stamping includes a lot of key points:
High-quality dies and tools improve production efficiency and overall output consistency.
Strong tooling reduces downtime and keeps production running smoothly.
Well-designed tooling minimizes the need for constant adjustments during production.
Reliable tooling supports higher production speeds without sacrificing quality.
Consistent tooling ensures the ability to accurately replicate the same part at scale.
Low-cost or poorly designed tooling can lead to production delays and interruptions.
Poor tooling increases defects, waste, and scrapped materials.
Inconsistent tooling results in unpredictable output and unstable production performance.
The Importance of Tool & Die Durability
Durability is another key factor. High-quality tool and die systems withstand repeated high-pressure stamping cycles, which reduces wear, extends tool life, and lowers long-term maintenance and replacement costs. The long-term durability of dies and tooling is largely impacted by a lot of variables; this includes the quality of steel used to craft the piece and the complexity of the product being produced.
Here are some additional considerations to keep in mind:
Material Properties: The hardness, toughness, and composition of both the die and workpiece materials directly influence wear rates.
Die Design: Elements such as radii, clearances, and surface finishes play a key role in either minimizing or accelerating tool wear.
Press Setup: Correct alignment, tonnage control, and shut height settings are critical to prevent uneven loading and premature tool damage.
Production Volume: While high-volume production naturally increases wear, well-optimized processes can help reduce its impact over time.
Lubrication and Cooling: Proper lubrication is essential to reduce friction and heat, two of the primary factors contributing to die wear and degradation.
The Importance of Final Product Integrity
Any business, including those in the custom metal stamping industry, relies on the quality, integrity, and consistency of its products to keep customers satisfied. A major pitfall, especially in metal manufacturing, is that a lack of integrity in the final product can lead to serious issues for both the supplier and the customer. However, not everyone is privy to why or how the integrity of custom metal stamping impacts different industries. Let’s explore some of the components that rely on custom metal stamping and reliable dies and tooling to produce the necessary parts to keep these industries running:
Automotive manufacturers: Structural brackets, chassis parts, clips, and interior components.
Aerospace industry: Lightweight, high-precision parts for airframes and engine systems.
Electronics and electrical manufacturers: Connectors, terminals, shielding, and enclosures.
Appliance manufacturers: Components for refrigerators, ovens, washers, and dryers.
Medical device companies: Surgical instruments, device housings, and precision components.
Industrial equipment manufacturers: Gears, brackets, housings, and reinforcement parts.
Construction and HVAC industries: Ductwork, fasteners, framing hardware, and fittings.
Consumer goods manufacturers: Tools, hardware, and small durable metal components.
How Tool & Die Design Lowers Cost Over Time
Upfront costs sting for any business, including those of various sizes in the custom metal stamping industry. However, where you don’t want to cut costs is when it comes to investing in quality tool and die parts.
Yes, investing in pricier parts can be intimidating; but in the long run, it can save a business a lot of money. And time. And headaches. And unsatisfied customers. And wasted materials. While also preventing bottlenecks.
Think of it this way: if you budget on tool and die design, you’re gambling that the quality of your custom metal parts could be inconsistent, which is unacceptable. By producing products that you can’t reliably replicate or produce on a semi-consistent scale, you’re not only going to end up with a lot of wasted material.
However, there’s another consideration to bear in mind.
Business isn’t just about making high-quality products: it’s also about building a reputation. Any business that has a reputation for inconsistency will not only spread by word of mouth, but it’ll spread on the Internet, which is forever. If someone searches a keyword or your business name, and sees a review or comment saying:
“Yeah... their products are totally unreliable. I won’t be repurchasing.”
This can come at an inflated cost to your business, as potential customers may overlook your company and choose one they see as more reliable. Those businesses typically rely on high-quality tool and die components to ensure consistent performance and results.
The cost to your business? High-quality tools and dies.
The Globe Stamping Difference
Globe Stamping is a leading custom metal stamping company with over 100 years of experience as a privately owned business. Our long-standing success is built on skilled employees, many of whom have been with us for decades, and a strong focus on precision tool and die design.
We prioritize high-quality tooling to ensure every part is produced with accuracy, consistency, and reliability. This commitment to engineered die and tool solutions allows us to deliver custom metal stamped products that meet exact customer requirements.
We have built lasting customer relationships by consistently delivering dependable results and supporting ongoing custom metal fabrication needs. Originally focused on hardware for the toolbox and trunk industry, we have grown to provide a wide range of specialty stamped components designed and tooled for specific applications.
